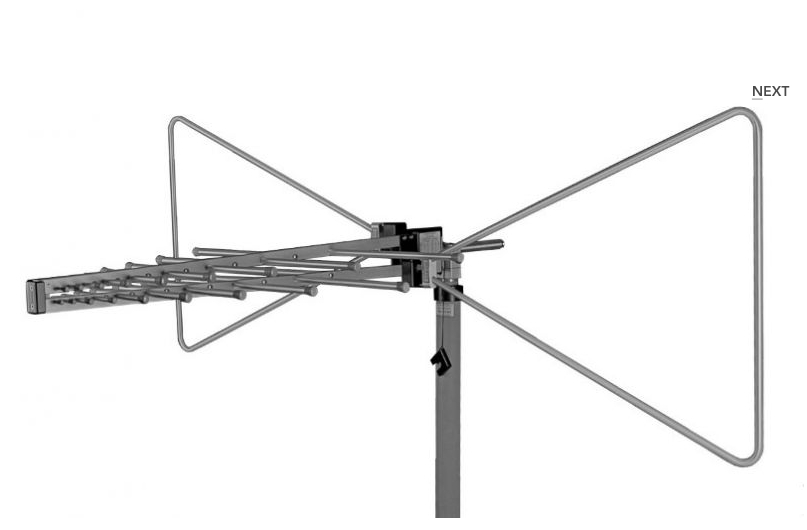

Linear polarized Logarithmic Periodic Broadband Antenna with Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
Linear polarized Logarithmic Periodic Broadband Antenna with Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
| Frequency Range, nominal: | 30 MHz - 1 GHz |
| Usable Frequency Range: | 25 MHz - 2 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 10 W |
| Connector: | N |
| Impedance: | 50 Ω nominal |
| Length: | 1.09 m |
| Width: | 1.50 m |
| Height: | 0.50 m |
| Weight: | 3.1 kg |
| Mounting: | 22 mm diameter tube |
| Recommended Adapter: | AA 9202, AA 9203, RA 9215 |
