喇叭天线
产品型号：9120D

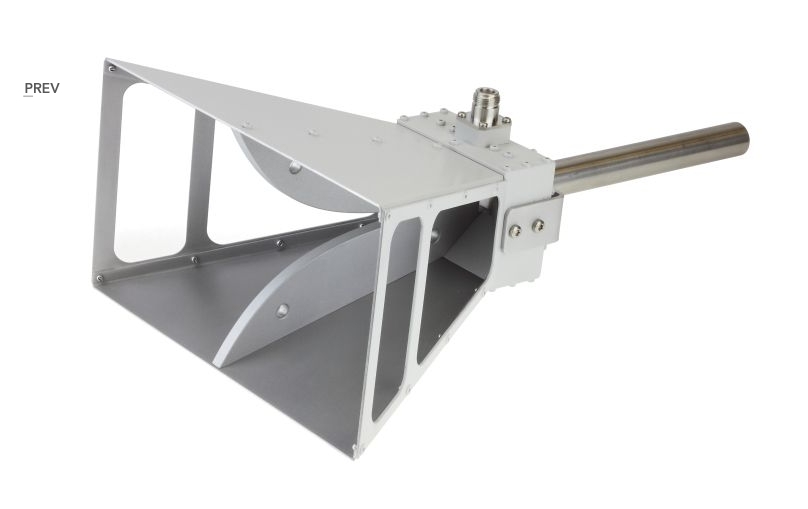

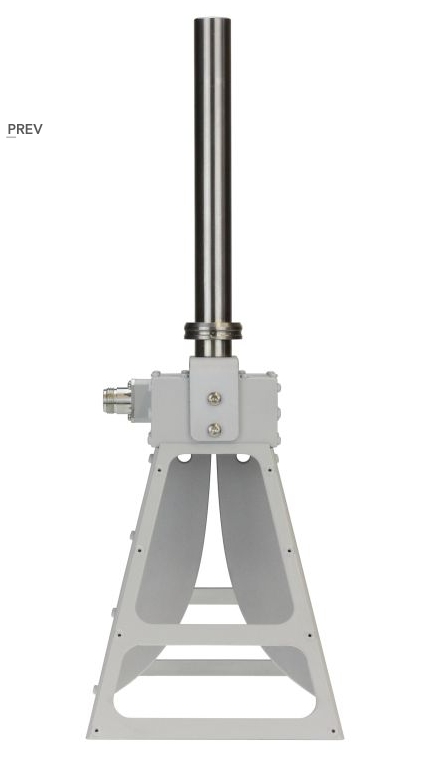

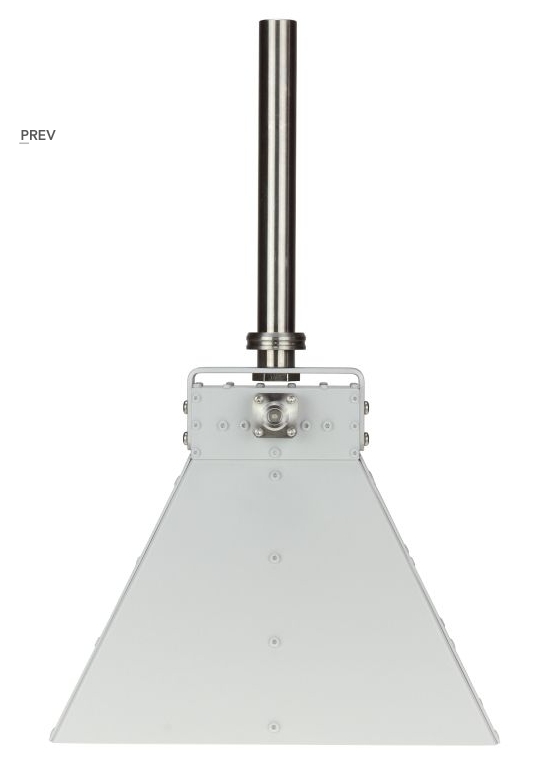

宽带喇叭天线 BBHA 9120 D 是一种线性极化双脊喇叭天线，频率范围为（0.8）1 GHz 至 18 GHz。
021-66780322
宽带喇叭天线 BBHA 9120 D 是一种线性极化双脊喇叭天线，频率范围为（0.8）1 GHz 至 18 GHz。
宽带喇叭天线 BBHA 9120 D 是一种线性极化双脊喇叭天线，频率范围为（0.8）1 GHz 至 18 GHz。
| Frequency Range, nominal: | 1 GHz - 18 GHz |
| Usable Frequency Range: | 0.8 GHz - 18 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | see diagramm |
| Connector: | N - female |
| Impedance: | 50 Ω nominal |
| Length: | 195 (408) mm |
| Width: | 250 mm |
| Height: | 142 mm |
| Weight: | 1.4 kg |
| Mounting: | 22 mm Tube |
| Recommended Adapter: | AA 9202, AA9202 POM, |
| AA 9203, RA9215 |
